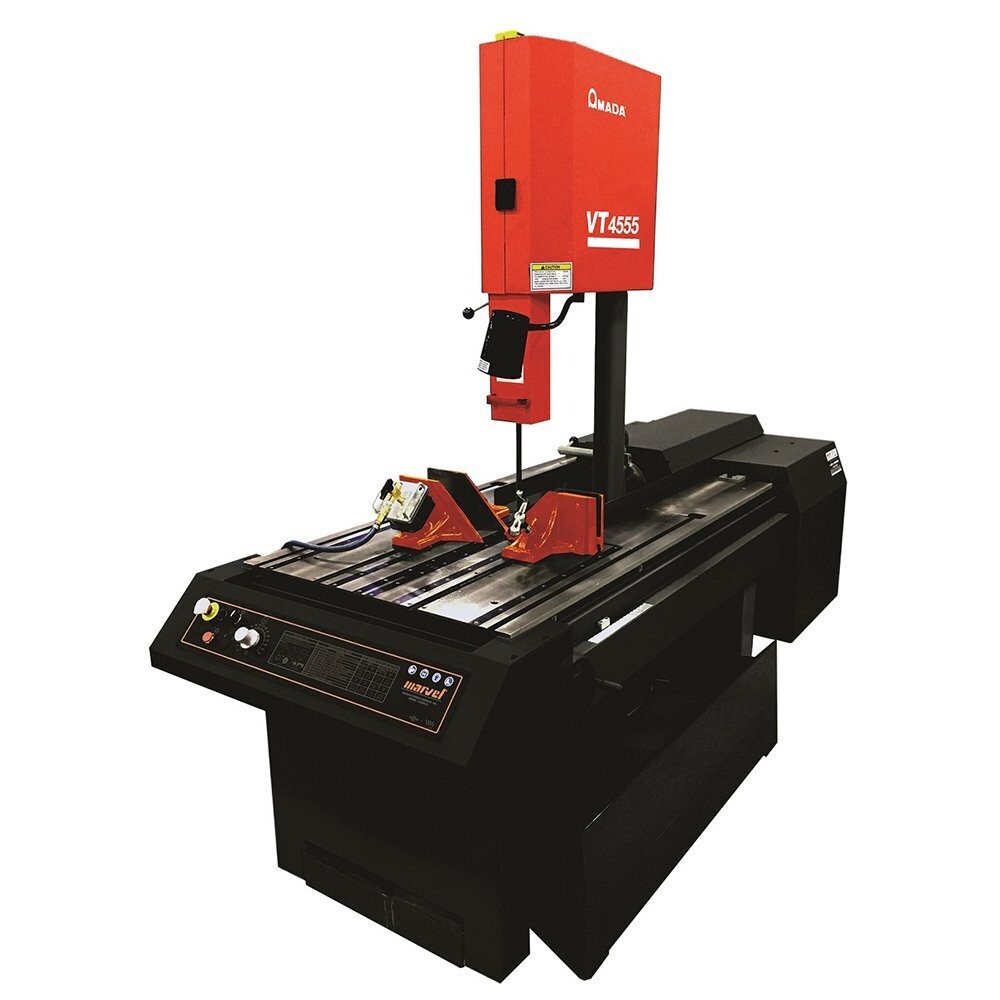

Amada VT4555 (Mark-II)

VERTICAL TILT-FRAME SAW
The World’s Most Popular Vertical Tilt-Frame

•  5 H.P.
•  1-1/4″ Blade
•  Marvel Series (8-Mark-II)
• All-Mechanical Design
• Cast Iron Construction
•  Metal Cutting
• Large Adaptable Work Table

FEATURES

Front Mounted Speed Control

Allows blade speed to be adjusted from the
operator’s control station.
 T-Slotted Work Table
Work area 24.25” x 33” (616 mm x 838 mm); table
height 34.5” (876 mm); four machined T-slots
accept .625” (15.5 mm) T-Bolts.
 0 – 3° Canted Column
The canted Column is not adjustable and is
available in either 0° or optional 3° Cant.
 Miter Cutting
The column and blade tilt up to 45° right and left.
 Quick Action Vice
Maximum opening 18” (457 mm). Jaws can be
shifted to either right or left side of the blade. Jaws
are 6” (152 mm) high, 12” (305 mm) wide.
 230V or 460V
 4 No Charge Blades to Get You Started.
(request from Sawing Products)
